Ecodan City Multi heat pump
ECODAN MULTI MINI VRF SMALL Y Series PUMY Heat Pump is an Air/Air, Air/Water hybrid system that, through the use of the BRANCH BOX connection to the air units, allows you to combine the flexibility of a multisplit system for cooling and heating with the comfort of a hydronic heat pump capable of producing hot water for: heating only, with the Hydrobox hydronic module with the possibility of installing an external storage tank, or heating and domestic hot water via the Hydrotank hydronic module with integrated 200-liter domestic hot water storage tank.
Maximum flexibility for the multisplit system, which can be composed of wall-mounted, floor-standing, ducted and ceiling-mounted indoor air units.
Class A domestic hot water heating
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Class A+ heat pump heating 55°C
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Class A++ heat pump heating 35°C
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Air cooling
Thanks to Mitsubishi Electric's experience and technological innovation in the field of air conditioning and Heat Pumps, the units in the Heating range are capable of delivering all energy services for the intended use, whether it is a domestic environment or a commercial setting.
The product provides cooling by air.
Air heating
Thanks to Mitsubishi Electric's experience and technological innovation in the field of air conditioning and Heat Pumps, the units in the Heating range are capable of delivering all energy services for the intended use, whether it is a domestic environment or a commercial setting.
The product provides heating by air.
SG Ready
The new Ecodan® hydronic modules support the SG ready function. An acronym for Smart Grid Ready, the function allows maximizing the self-consumption of electricity from a photovoltaic system and is realized with 2 additional inputs.
Water systems - Domestic hot water production
Thanks to Mitsubishi Electric's experience and technological innovation in the field of air conditioning and Heat Pumps, the units in the Heating range are capable of delivering all energy services for the intended use, whether it is a domestic environment or a commercial setting.
The product is capable of providing domestic hot water.
Technical sheet

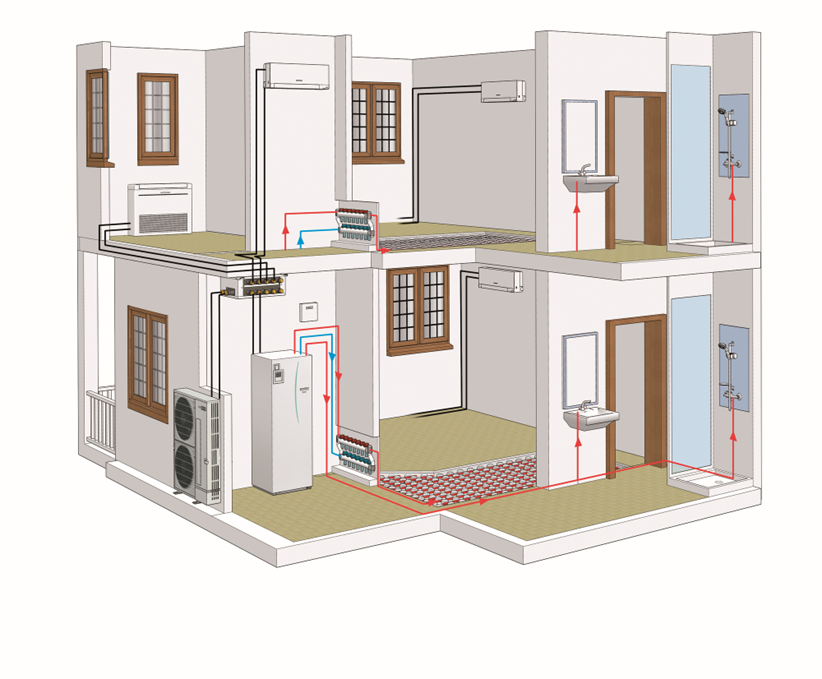

Heat pump for heating/cooling with integrated hot water production
Thanks to the use of the branch box, it is possible to connect direct expansion indoor units to heat and cool rooms.
Bringing the Hydrotank indoor module to the outdoor unit makes it possible to produce water at the optimal temperature to meet all integrated heating and hot water production needs.
In fact, the Hydrotank module is equipped with a 200-liter storage tank to meet a variety of domestic hot water needs with an outlet temperature of up to 55°C.
All the main components of the primary plumbing system are contained inside, greatly facilitating the installation and use of space.
The table below shows the combinations of the outdoor unit and the corresponding indoor Hydrotank unit with the main technical characteristics
| Model | PUMY-P112VKM6 PUMY-P112YKM5 | PUMY-P125VKM6 PUMY-P125YKM5 | PUMY-P140VKM6 PUMY-P140YKM5 |
| Hydrotank 200 liter "hot only'' | EHST20C-VM2D | EHST20C-VM2D | EHST20C-VM2D |
| Water heating | |||
| Nom Capacity/Max (Air 7° / Water 35°) | 12.5 | 12.5 | 12.5 |
| COP Nom / Max(Air 7° / Water 35°) | 4,083 | 4,083 | 4,083 |
| Temp. Water Max (°C) | 55 | 55 | 55 |
| Energy Efficiency Class (Water 35°)* | A++ | A++ | A++ |
| SCOP(Water 35°) | 4.20 | 4.20 | 4.20 |
| Hot water | |||
| RANK (ACS Load Profile)** | A (L) | A (L) | A (L) |
| Arial heating | |||
| Nominal capacity kW | 14.0 | 16.0 | 18.0 |
| COP | 4.61 | 4.28 | 4.03 |
| Air cooling | |||
| Nominal capacity kW | 12.5 | 14.0 | 15.5 |
| EER | 4.48 | 4.05 | 3.43 |
*Heating rank (water 35°): from A+++ to D
**ACS load profile rank: from A+ to F
Heat pump for heating/cooling with optional external hot water storage
Thanks to the use of the branck box, it is possible to connect direct expansion indoor units to heat and cool rooms.
By combining the outdoor unit with the Hydrobox indoor module, it is possible to meet all heating needs.
The Hydrobox module provides great flexibility of use and versatility of installation.
An optional external domestic hot water cylinder can be associated with it.
The table below shows the main technical features.
| Model | PUMY-P112VKM6 PUMY-P112YKM5 | PUMY-P125VKM6 PUMY-P125YKM5 | PUMY-P140VKM6 PUMY-P140YKM5 |
| Hydrobox "hot only'' | EHSC-VM2D | EHSC-VM2D | EHSC-VM2D |
| Water heating | |||
| Nom Capacity/Max (Air 7° / Water 35°) | 12.5 | 12.5 | 12.5 |
| COP Nom / Max(Air 7° / Water 35°) | 4,083 | 4,083 | 4,083 |
| Temp. Water Max (°C) | 55 | 55 | 55 |
| Energy Efficiency Class (Water 35°)* | A++ | A++ | A++ |
| SCOP(Water 35°) | 4.20 | 4.20 | 4.20 |
| Arial heating | |||
| Nominal capacity kW | 14.0 | 16.0 | 18.0 |
| COP | 4.61 | 4.28 | 4.03 |
| Air cooling | |||
| Nominal capacity kW | 12.5 | 14.0 | 15.5 |
| EER | 4.48 | 4.05 | 3.43 |
*Heating Rank (water 35°): from A+++ to D
