4-way Cassette Indoor Unit PLFY-MS VEM-E
A 4-way box with optimal airflow, easy to install and clean, compatible with Plasma Quad filter to always breathe healthy air.
City Multi
The product belongs to the City Multi line: designed to maximize the efficiency of systems.
PlasmaQuadConnect Optional
The Plasma Quad Connect filter is compatible with the use of dedicated accessories.
R32
This Mitsubishi Electric product uses R32 refrigerant gas, which has a low greenhouse effect.
Technical sheet
Optimal airflow

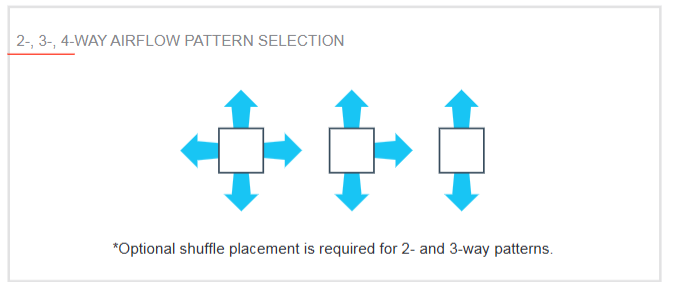

2, 3 or 4-way airflow selection
To meet different installation needs, three air outlet options are available: two-way, three-way, and four-way. For example, you can select the four-way scheme for an installation in the center of the room, or the three-way option in case of corner placement.

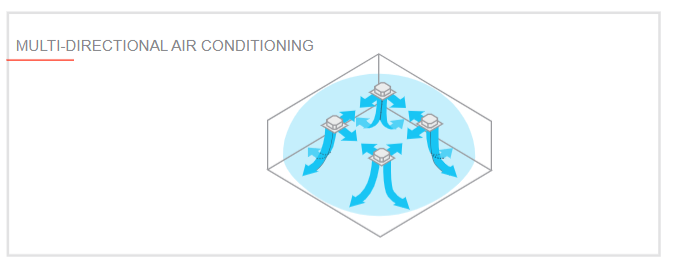

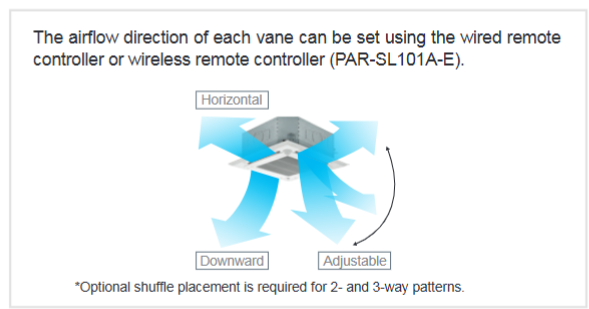

Individual settings for deflector angles
The direction of the baffles can be defined or changed by the remote control to direct air relative to objects or people in the room.
The combinations made possible by the adjustment of individual baffles make it possible to configure optimal air emission for each room to ensure even temperature distribution throughout the room. The result is pleasant and uniform conditioned air.

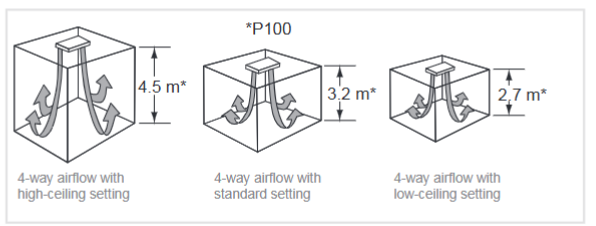

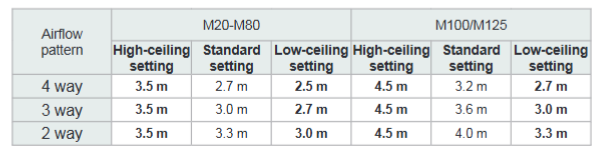

Different modes for high and low ceiling
For all ceiling heights
The units have different modes for use with a high or low ceiling, allowing the volume of airflow to be varied to suit the height of the room. Being able to choose the optimal volume helps optimize the perception of air throughout the room.
Automatic adjustment of air speed and horizontal flow

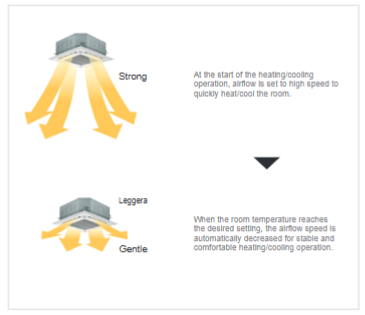

Automatic adjustment of air speed
An automatic mode adjusts the speed of air flows to maintain a comfortable room condition at all times. With this setting, the unit can autonomously change the air speed according to the climate in the room.

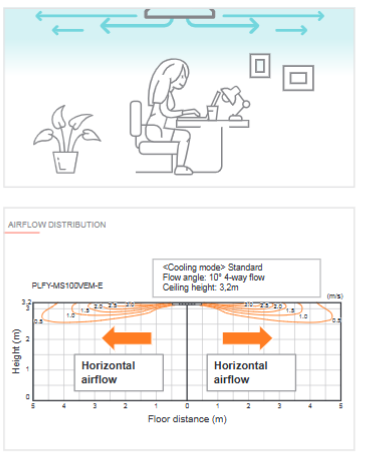

The air is fed horizontally into the room to reduce the feeling of cold draft. This airflow is ideal for offices and restaurants.
Simplified installation

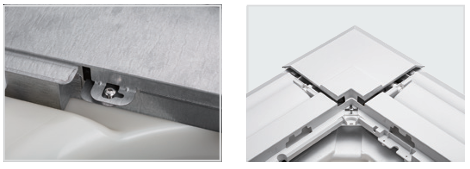

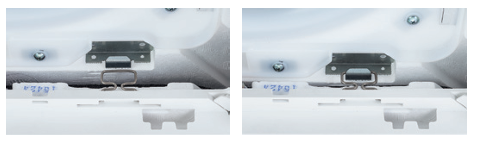

Temporary suspension hook
The panel structure has been redesigned and is now equipped with a temporary suspension hook. This improves work efficiency during panel installation.
No need to remove screws
It is possible to install the system without removing the screws of the corner panel and control box, which simply need to be loosened. This reduces the risk of losing the screws.

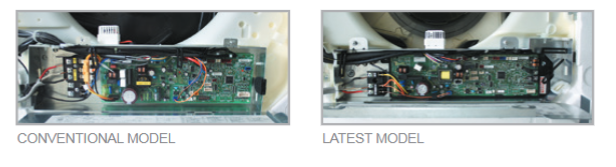

Wiring the electrical box
After revising the location of the power terminals in the electrical box, the structure was redesigned to improve connectivity.
In this way, complex wiring work becomes easier.

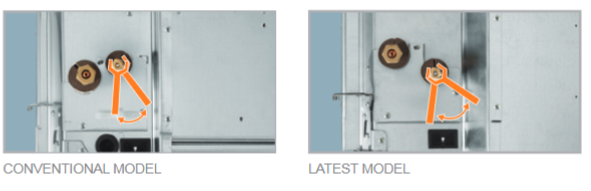

More space for plumbing work
The upper and lower positions of the liquid and gas tubes have been reversed to enable faster completion of the work on the gas tubes, which requires more effort.
Structural innovations around the pipes have left more room to operate the work tools, improving on the liquid pipes and allowing it to be completed smoothly.
IT terminal, Plasma Quad Connect and ease of cleaning
IT terminal
An IT terminal is available. For more information, contact your local distributor.
Plasma Quad Connect

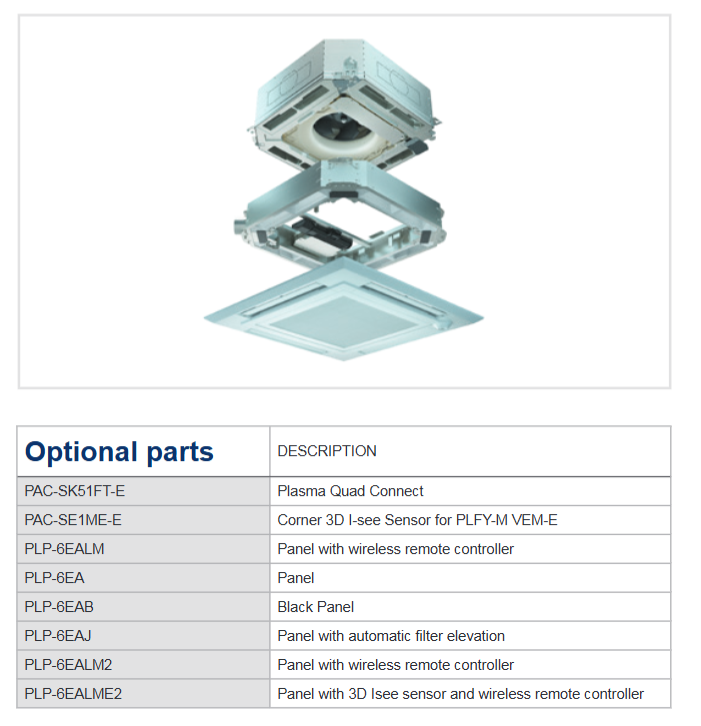

The optional Plasma Quad Connect PAC-SK51FT-E can be installed on indoor units.
Ease of cleaning
Automatic elevation panel makes it easy to clean the filter, even with high ceilings.
