Ducted Unit PEFY-MS VMA-A
The Plasma Quad Connect-compatible, flexible, efficient and environmentally friendly medium-high head ducted indoor unit with R32 refrigerant gas.
City Multi
The product belongs to the City Multi line: designed to maximize the efficiency of systems.
PlasmaQuadConnect Optional
The Plasma Quad Connect filter is compatible with the use of dedicated accessories.
R32
This Mitsubishi Electric product uses R32 refrigerant gas, which has a low greenhouse effect.
Technical sheet
Five levels of static pressure setting and four fan speeds
Five levels of static pressure setting
Five-stage external static pressure settings offer flexibility for duct extension, branches, and air outlet configuration and are adjustable to meet different application conditions. The range of settings goes up to a maximum of 150Pa.
Four fan speeds
The traditional models had three levels of fan speed, while the new models offer four (low, medium2, medium1, high).
Along with a wider selection of external static pressure levels, the new models offer optimal operating settings to suit the air conditioning load of the installation space.

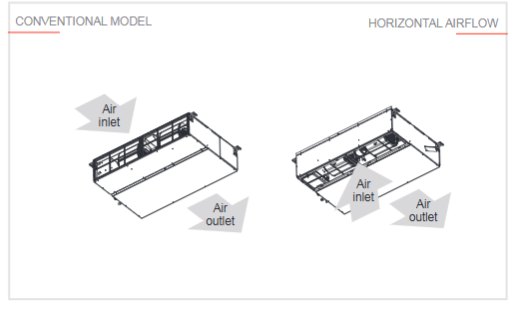

Ease of changing air inlet direction
Thanks to the closing panel
By simply changing the closure panel and air filter, the inlet arrangement can be changed from the rear inlet to the bottom inlet. At factory delivery, the inlet is rear.
Compatibility with Plasma Quad Connect
Optional connection
The optional Plasma Quad Connect (PQ) MAC-100FT-E can be installed on the air inlet side of the indoor unit. Either a PQ connection or a PQ box is required for installation.

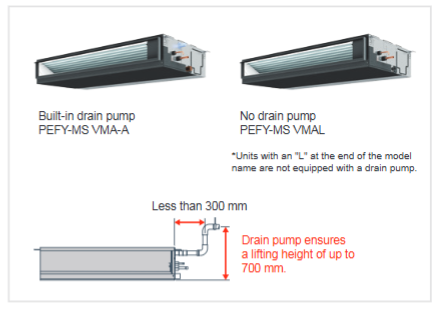

Optional drainage pump
Two models: with or without drainage
The range includes two types of models, with or without integrated drainage pump, for greater flexibility in pipe layout design.
