Medium Static Pressure Ceiling-Concealed Unit PEAD-SM JAL
Indoor built-in unit, slim and perfect for small spaces
Thin, designed for built-in in small spaces. Versatility and economy coming together.
Class A air conditioning cooling
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Class A heating air conditioning
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Technical sheet

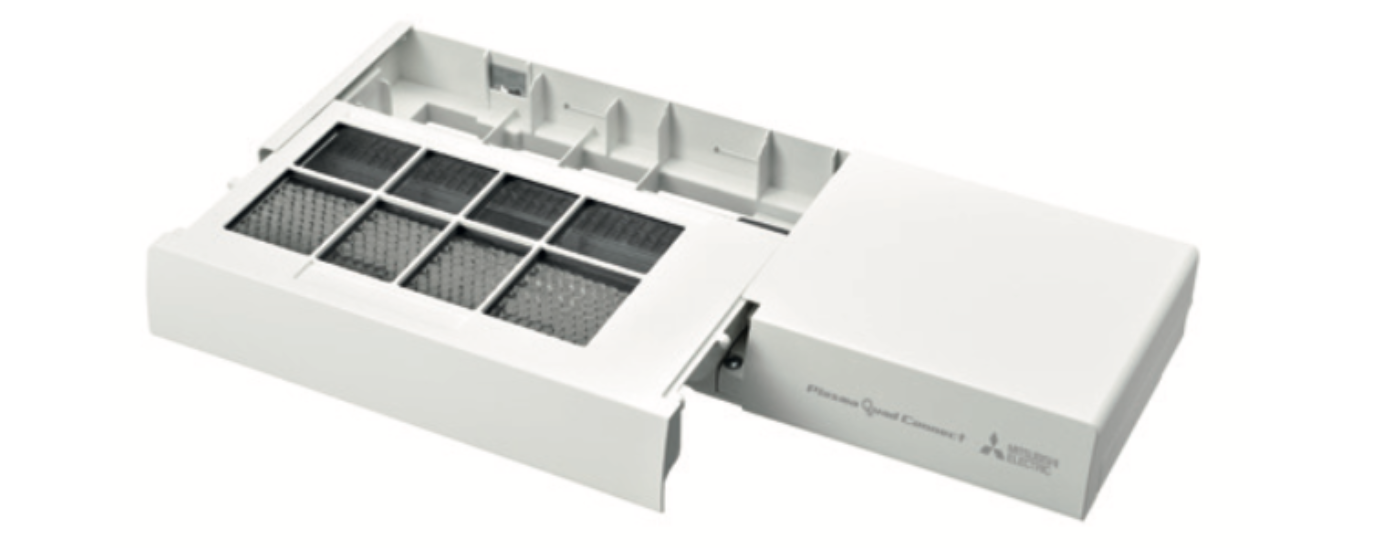

Compatible with optional Plasma Quad Connect
The optional Plasma Quad Connect MAC-100FT-E filter can be installed on the indoor unit. An accessory is required for installation.

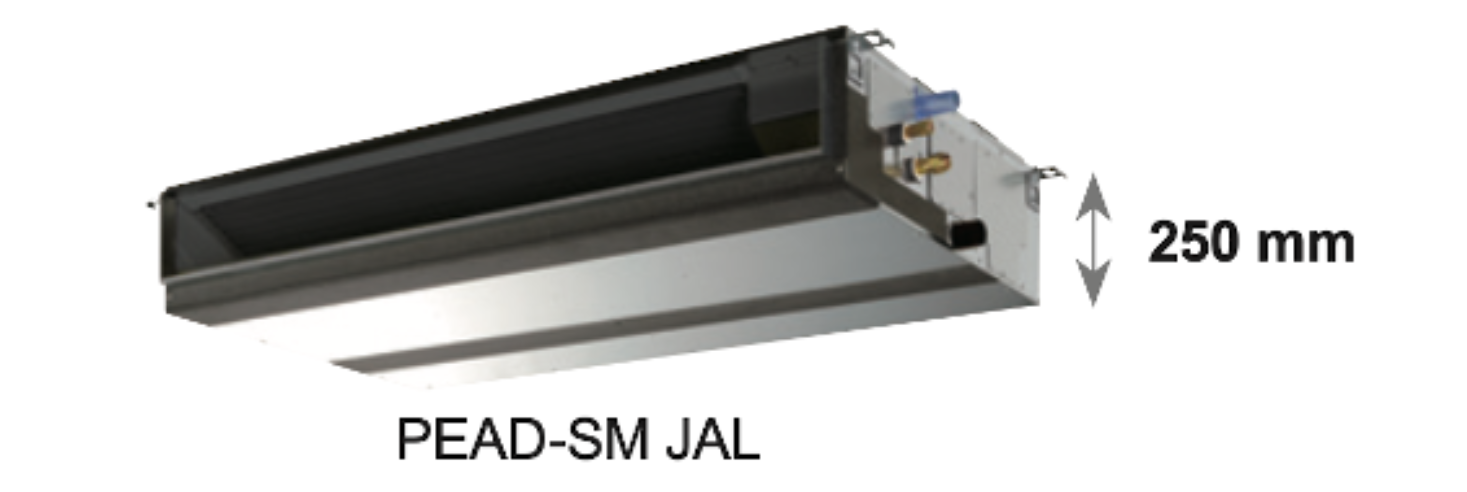

Compact indoor units
With a height reduced to about 250mm, ceiling installation of these units is possible even where space is extremely tight.

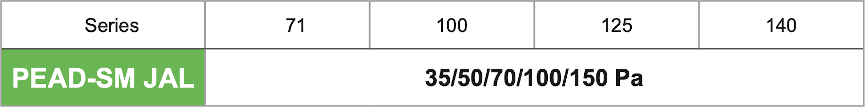

External static pressure
External static pressure conversion can be set to five levels. A maximum level of 150 Pa can be set, and the units are versatile and can be used in any type of building.
New outdoor units
Mitsubishi Electric introduces new models of outdoor units, SUZ-SM71 and PUZ-SM at R32, with compact dimensions (less than one meter in height). The units are available in sizes 71 and 100 (single-phase), 100, 125 and 140 (three-phase).
Thanks to the single-fan chassis, these units boast greater flexibility and less impact to the eye, during and after installation.
The size is reduced, but the length of the piping remains the same:
Maximum length: 40m (30m for 71 and 100)
.
Maximum height difference: 30m
