Hyper Heating MSZ-LN VGHZ
Unlike conventional air conditioning systems, the LN Series don’t lose heating capacity when it’s cold outside. Original technologies ensure excellent heating performance under extremely low outdoor temperatures and an impressive guaranteed operating range.
Class A+++ air conditioning cooling
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Class A+++ heating air conditioning
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Dual Barrier Coating
During operation, dust and impurities introduced during air conditioning operations settle on the internal components, especially the battery and fan, increasing machine consumption by up to 18%. With Dual Barrier Coating, the internal components of the product are treated with a second protective layer, which prevents dust and impurities from being deposited even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit relative to this issue.
PlasmaQuadPlus Built In
Plasma Quad is the filtration that can eliminate bacteria and viruses such as SARS-CoV-2 through a technology that uses an electric field and a series of electric discharges through which the air fed into the room passes.
On this product, the filter is installed as standard.
R32
This Mitsubishi Electric product uses R32 refrigerant gas, which has a low greenhouse effect.
Silence 19dB(A)
The product is designed to minimize noise during air conditioning operations.
Winner - Good Design Award 2016
The Good Design Award is an industrial design award given to the most innovative products of the year.
Technical sheet
Unparalleled Heating Performance
High-output compressor
LN Series outdoor units are equipped with a high-output compres- sor that provides enhanced heating performance under low outdoor temperatures. The heating operation range is extended down to -25°C

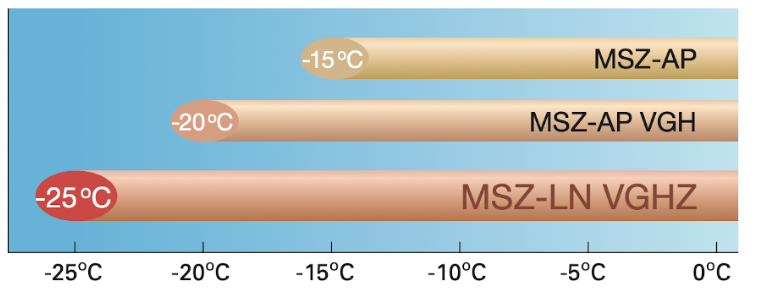

Operating range

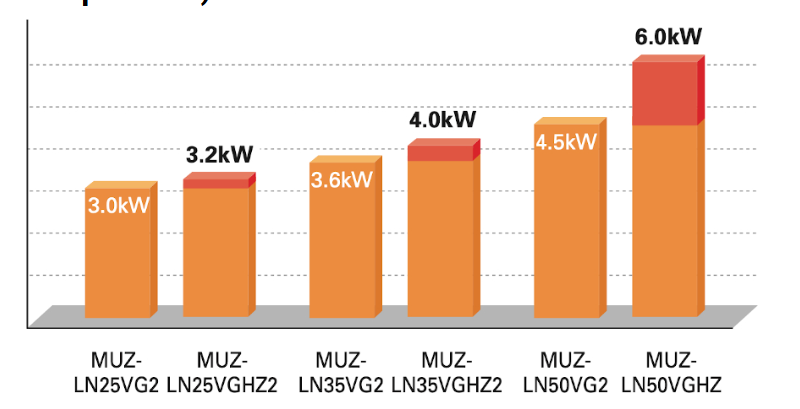

Declared capacity (at reference design temperature)

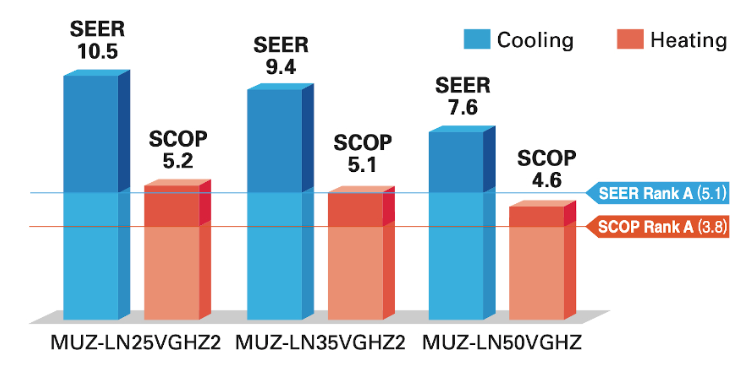

High energy efficiency
High energy rank for all models
With indoor units that combine functionality, design and capacity and outdoor units equipped with a high-efficiency compressor, the MUZ-LN VGHZ simultaneously achieves high heating capacity and energy-saving performance.

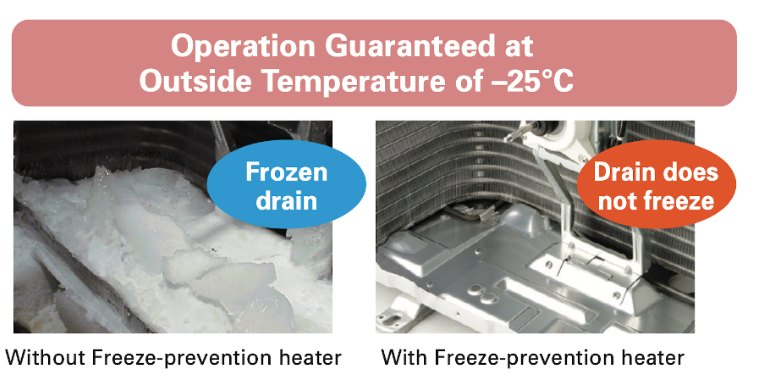

Freeze-prevention heater equipped as standard
Freeze-prevention heater
The freeze-prevention heater restricts lowered capacity and opera- tion shutdowns caused by the drain water freezing. This supports stable operation in low-temperature environments.
Compact, powerful compressor

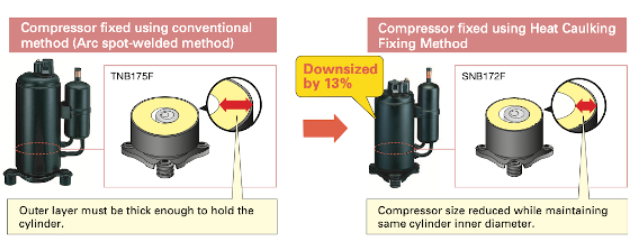

Heat caulking fixing method
A special manufacturing technology, "heat caulking fixing method", has been introduced to reduce compressor size while maintaining a high compressor output. This technology enables the installation of a powerful compressor in compact MUZ outdoor units. As a result, excellent heating performance is achieved when operating in cold outdoor environments.
