Split heat pump for large areas PUHZ-S(H)W
Outdoor temperature will never be a problem.
PUHZ-SHW Series Zubadan Split heat pump in R410A has optimized performance for very low outdoor temperatures.
It is capable of meeting the needs of heating, cooling and domestic hot water production. It consists of a direct expansion outdoor unit and an indoor hydronic module for heating and cooling with/without storage.
Class A++ heat pump heating 35°C
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
Class A++ heat pump heating 55°C
Mitsubishi Electric's contribution to realizing an increasingly green future results in products with high technological content that consume less and less energy and significantly reduce greenhouse gas emissions.
MelCloudOptional
MelCloud controls your air conditioning system remotely, via smartphone, tablet or computer with the dedicated app or via browser. The unit can be equipped with the Wi-Fi controller.
R410A
The Mitsubishi Electric product works with refrigerant gas R410A.
SG Ready
The new Ecodan® hydronic modules support the SG ready function. An acronym for Smart Grid Ready, the function allows maximizing the self-consumption of electricity from a photovoltaic system and is realized with 2 additional inputs.
Water systems - Domestic hot water production
Thanks to Mitsubishi Electric's experience and technological innovation in the field of air conditioning and Heat Pumps, the units in the Heating range are capable of delivering all energy services for the intended use, whether it is a domestic environment or a commercial setting.
The product is capable of providing domestic hot water.
Water systems - Water cooling
Thanks to Mitsubishi Electric's experience and technological innovation in the field of air conditioning and Heat Pumps, the units in the Heating range are capable of delivering all energy services for the intended use, whether it is a domestic environment or a commercial setting.
The product provides cooling through water.
Water supply temperature 60°
The product's water flow temperature reaches 60°, adapting it to any system configuration: underfloor as well as in radiators.
Zubadan
Hydronic heat pumps for all heating, cooling and domestic hot water solutions. Many models for every intended use: stand-alone or centralized residential, commercial, tertiary, hotel and industry: an environmentally friendly choice with high technology and energy savings.
Technical sheet
Extended refrigeration lines and cascade systems
Cascaded systems
For centralized building systems where heat loads are higher, up to 6 Ecodan units can be connected in cascade. The system is managed by a master control unit and always operates at optimum efficiency even at partial loads.
Extended refrigeration lines
The high extension of the refrigeration lines and the possibility of reaching a height difference of up to 30 meters makes it possible to install the heat pump in the roof and the hydrobox in the heating plant in the basement.
Solution for large areas
Solution for large areas
The Ecodan and Zubadan - Large Split systems are the ideal solution for application in large areas. The high heating and cooling capacity and the possibility of cascade combination make them the ideal solution for tertiary applications or in case of central heating.

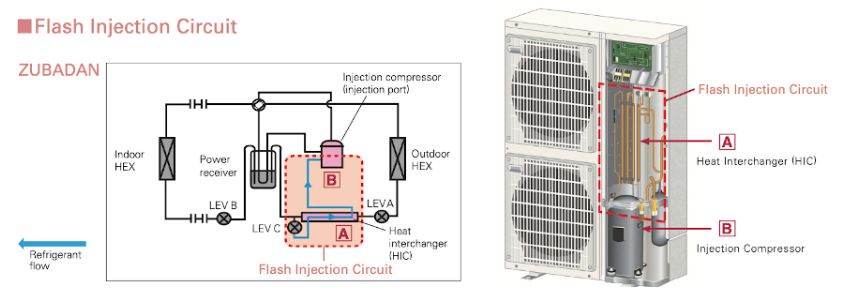

Zubadan - Flash Injection Technology
Patented technology
Thanks to the patented Flash Injection Technology, the Zubadan series outdoor units are able to guarantee the nominal heating performance down to -15°C and continuous operation down to -28°C.
