Three-phase air source heat pump PUMY-P-200YKM
Line Small Y High Capacity
The Small Y High Capacity line
guarantees the advantages of compactness of the Small Y line and possibility of higher capacities up to 08 HP with front ventilation section
ErP Compliant
Mitsubishi Electric products comply with the Ecodesign Directive with the minimum requirements imposed in order to ensure transparent and environmentally friendly design.
All products that reflect the Ecodesign Directive declare the efficiency used by the products to define the actual energy consumption.
Mitsubishi Electric Replace Technology
Mitsubishi Electric's patented replace technology system allows existing plumbing and electrical networks to be maintained during the replacement of air conditioning systems when switching from R22 to R410A refrigerant. The replace technology thus makes the required investment lower than total system replacement.
R410A
The Mitsubishi Electric product works with refrigerant gas R410A.
Small Y High Capacity Line
The Small Y High Capacity Line products are compact heat pump systems.
Technical sheet
VRF performance, the footprint of a multisplit
The new PUMY-P200YKM2(R2) 2HP is the ideal solution for all applications where you do not want to compromise between efficiency, power and installation flexibility. All with reduced installation space.
The Power of a VRF, the Elegance of a Residential Multi-Split
Thanks to the use of the LEV KIT and Branch Box (available in the 3 and 5 connection version), it is now possible to connect also to the outdoor unit of the Small Y Series in the 8 HP size the entire range of indoor units of the Residential and Commercial Series whose stylistic canons are perfectly matched in those contexts (residential facilities and hotels) where design and elegance are determining elements in the choice of indoor units.

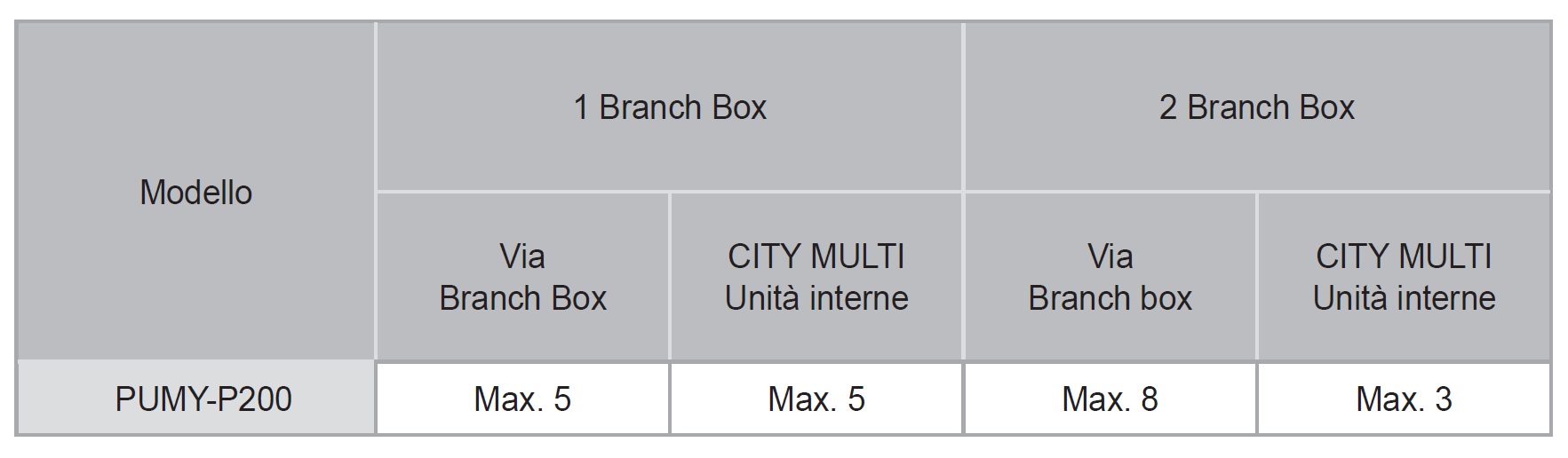

M-NET Branch Box
The new Branch Boxes are designed to give the system the highest possible configuration flexibility.
Systems equipped entirely with CITY MULTI VRF units, systems consisting exclusively of Residential/Commercial Series indoor units, or mixed systems in which the two types of units coexist.
NOTE: The connection of the Branch Box with the PUMY-P200YKM1 can only be made in the AIR/ARIA configuration.
Mitsubishi Electric puts the best professionals at your service to advise you in your choice and guide you through all the steps of purchase and installation.
