PRISMA Remote Control PAR-CT01MA

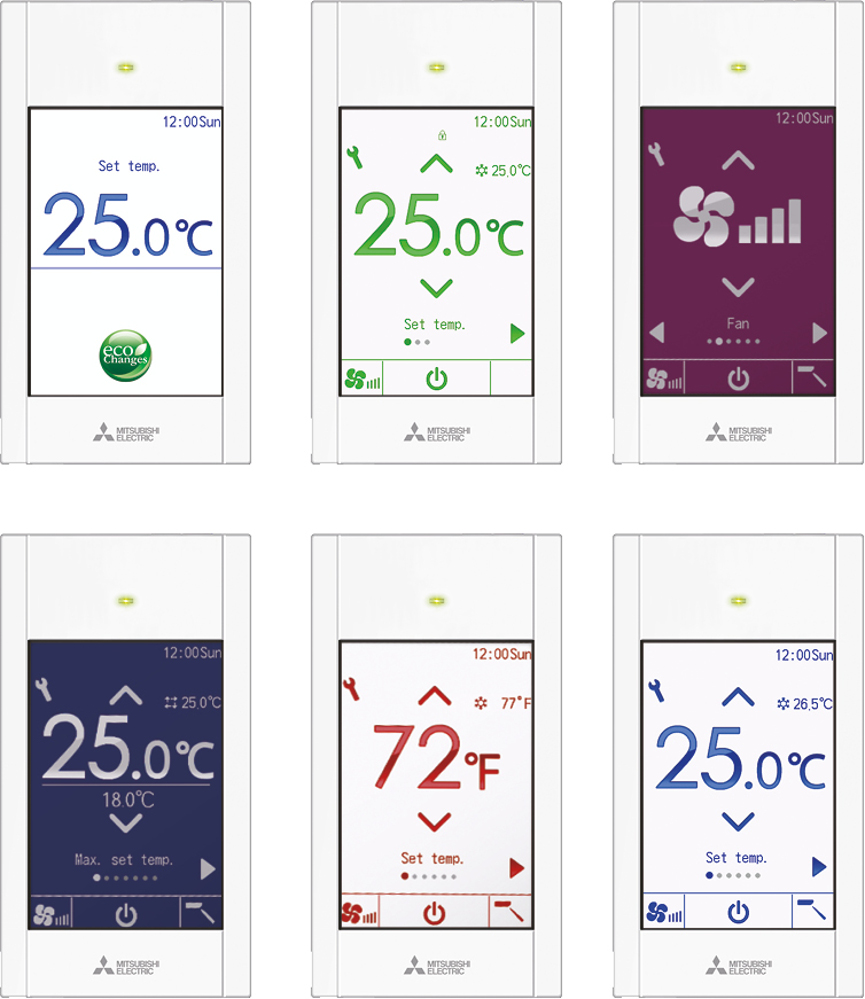

Backlit color touch screen display with brightness control
Choice of 180 characters for character display and display background
Simplified wall installation
Night Set-back function for setting winter minimum maintenance temperature or summer maximum maintenance temperature
Static Head selection function Useful for ducted indoor units (PEFY-P VMHS only)
Internal weekly timer function and simplified timers (Auto-off, etc.)

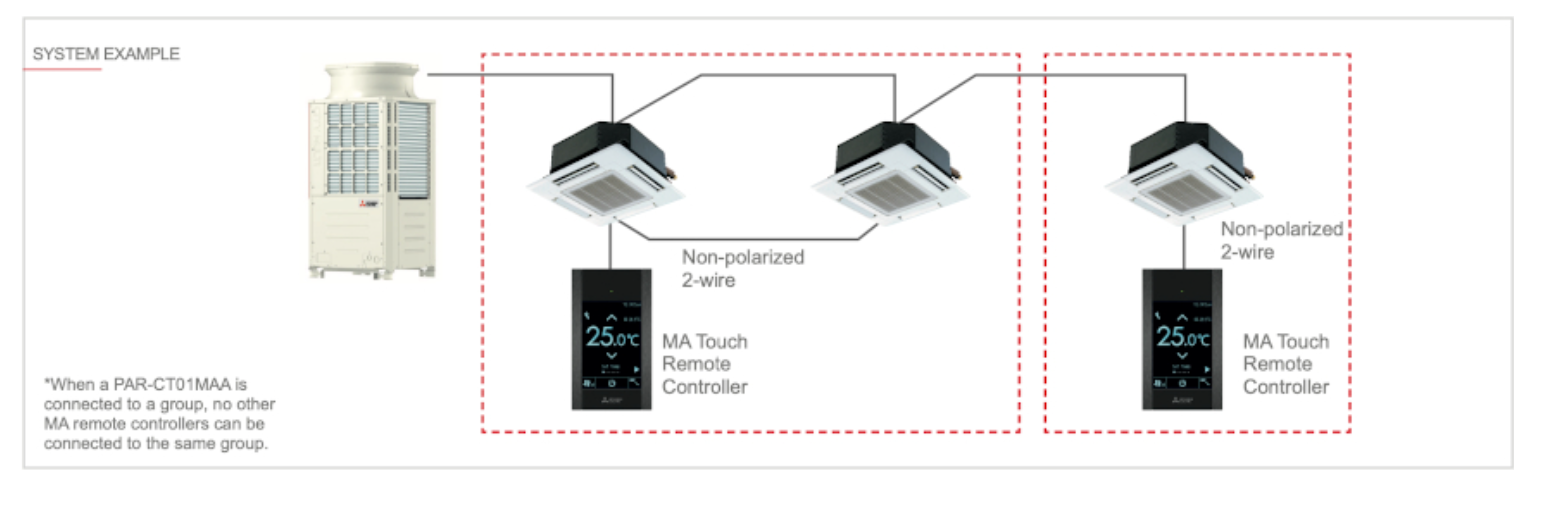

Management of 1 Group up to 16 Indoor Units

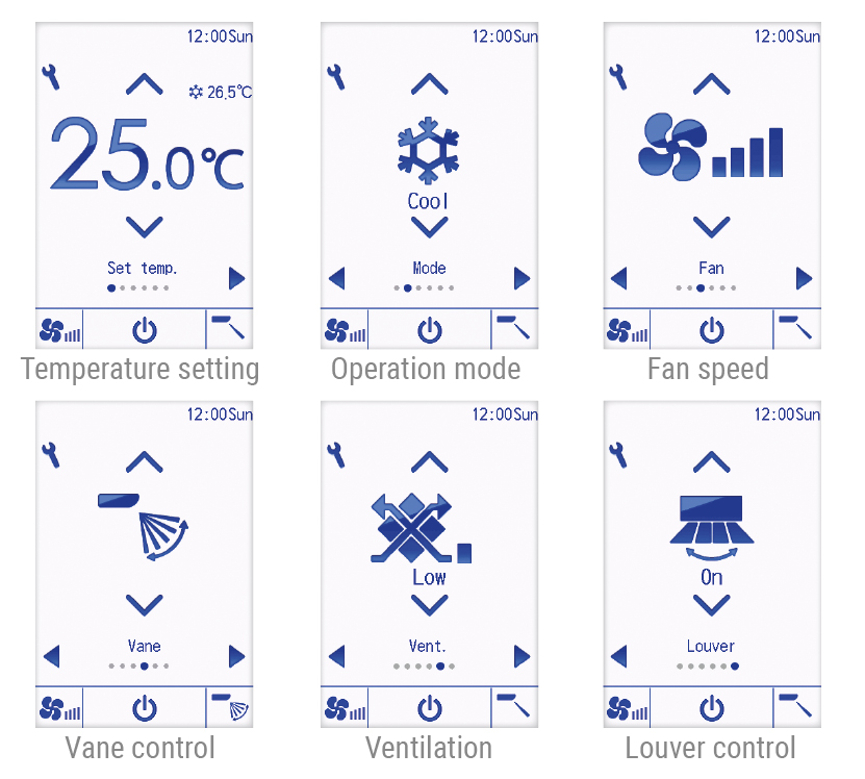

Easy and intuitive through the use of graphic icons, direct keys and function keys
Self-addressing MA-type technology
Set-Point temperature display and setting with 0.5°C steps
Show all (+1)
Support of 3D i-see Sensor functions for the 4-way 60x60 PLFY-P VFM-E1 cassette and the 4-way 90x90 PLFY-P VEM-E cassette

Customizable, touch and backlit

The Prisma remote control boasts a large, backlit, color touch display. Customizable, it features Bluetooth® connection and is easy to install.

Technical sheet

Expand all | Collapse all

001 (1).jpg

Ability to choose from 14 available languages: English, French, Spanish, Italian, Portuguese, Greek, Turkish, Swedish, German, Russian,,, Czech, Hungarian, Polish

The new PRISMA remote control features a 3.5-inch HVGA color touch display.


The PAR-CT01MA remote control is equipped with Bluetooth Low Energy connection. Through the use of two dedicated Apps (User App and Professional App), you can connect your smartphone or tablet to the remote control.

  • The User App allows you to operate the remote control (and thus the climate control system) using your smartphone or tablet as if you were in front of the remote control.
  • The professional App allows you to simplify the configuration of the remote control during installation/startup. In fact, thanks to the dedicated App, it is possible to define and save a setting on one's mobile device and then transfer it quickly and easily to all remote controls in the system, speeding up and simplifying the system configuration phase.

A logo image can be displayed in the home screen of the menu. The logo is thus displayed whenever the display backlight is on (in the home screen). The display backlight can be timed or kept constantly on.

.
