The M-Net interface model PAC-YG63MCA is a device for acquiring analog temperature or humidity sensors, to be installed on the wall or in the electrical cabinet.

Through the interface, it is possible to manage active-type analog temperature and humidity measurement sensors.

A 3D Web Server centralizer (TOUCH or BLIND) is essential to use the interface.

The functions available via Web browser are:

• Sensor instantaneous values display
• Sensor measurement graph trend display
• Export to CSV formats
• Setting alarm thresholds with email notification
• Alarm output to a relay when thresholds are exceeded (on-board interface relay)
• Interlocking with air conditioner functions and other input/output interfaces when thresholds are exceeded
• Representation of icons on graphical floor plans

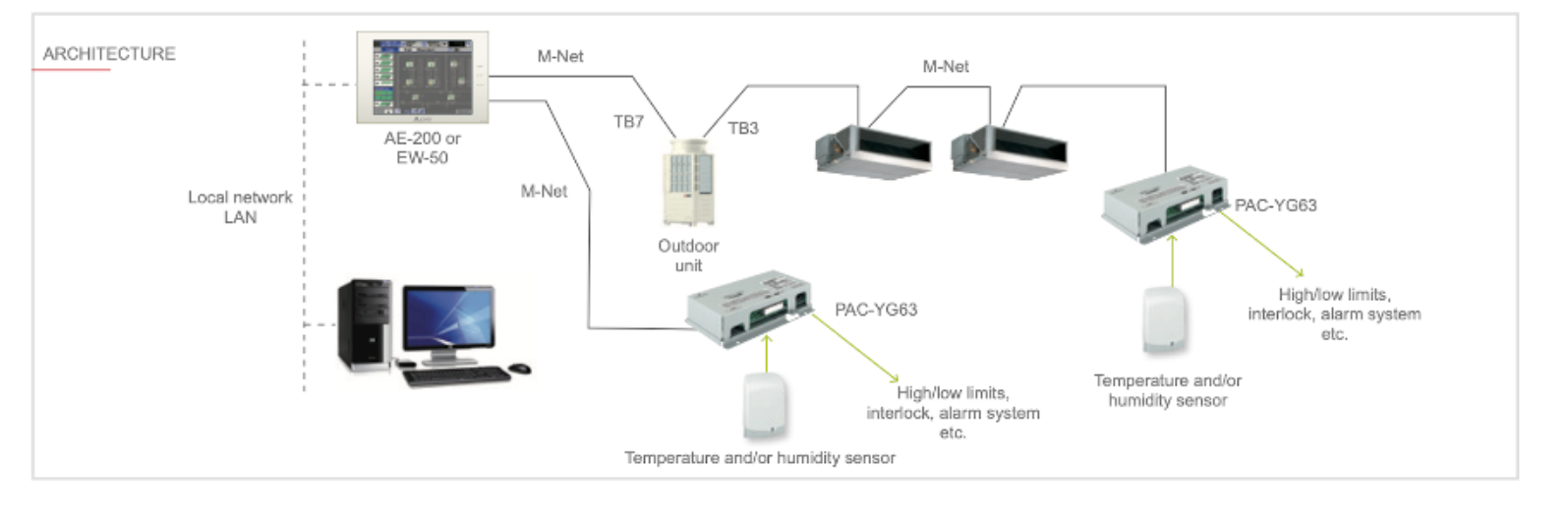

The M-Net interfaces have been developed to enable the connection of external signals of various kinds to the MELANS management and supervision system, both input and output, i.e., monitoring and control.

The interfaces are connected directly to the M-Net data transmission bus.

Thanks to their modularity, and it is possible to connect multiple interfaces on the same network.

To connect the interfaces, it is necessary to provide 24VDC auxiliary power supply with a separate locally supplied power supply.

The following M-Net interfaces are available:

• PAC-YG60MCA: Digital counter interface (Pulse Input).
• PAC-YG63MCA: Analog sensor interface (Analog Input).
• PAC-YG66DCA: Digital Sensor Interface (DIDO).
