The M-Net interface model PAC-YG60MCA is a device for acquiring digital meters with pulse output, to be installed on the wall or in the electrical cabinet.

Through the interface, it is possible to manage electric energy meters (WHM), water meters, gas meters, and calorimeters as long as they have pulse measurement output.

Each individual interface allows up to 4 digital meters to be connected.

For the use of the interface, it is essential to provide a centralized 3D WEB Server control (TOUCH or BLIND) in the system that will allow monitoring its status and:

• View its instantaneous values
.
• View its graphical trend
• Restablish and export its data in csv format for consumption breakdown (CHARGE)

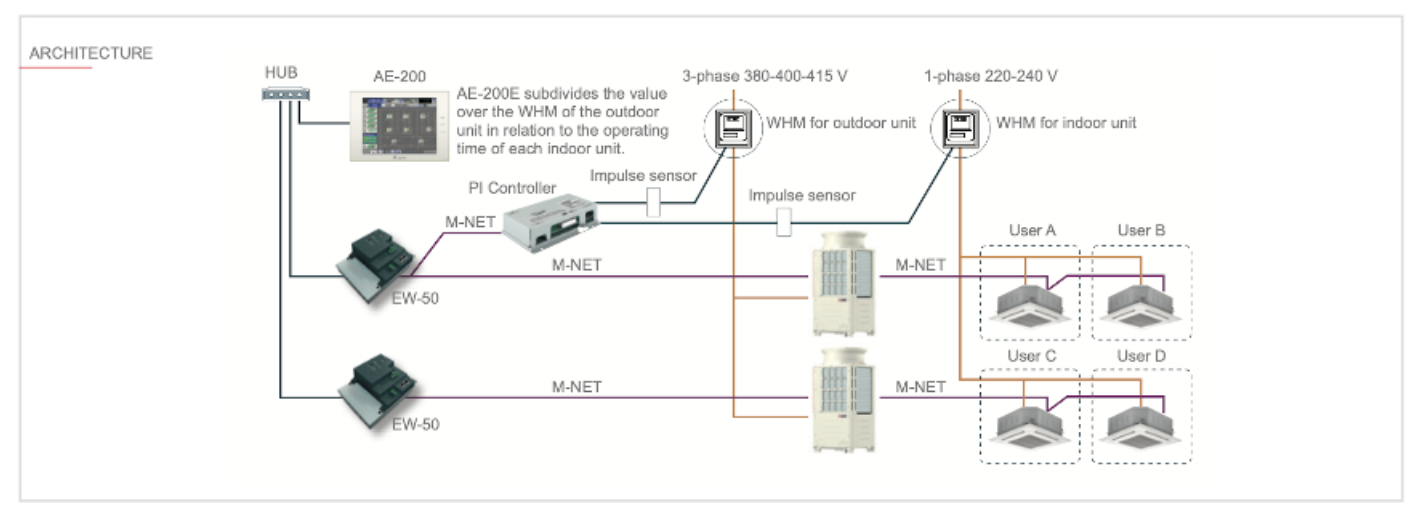

The M-Net interfaces have been developed to enable the connection of external signals of various kinds to the MELANS management and supervision system, both input and output, i.e., monitoring and control.

The interfaces are connected directly to the M-Net data transmission bus.

Thanks to their modularity, and it is possible to connect multiple interfaces on the same network.

To connect the interfaces, it is necessary to provide 24VDC auxiliary power supply with a separate locally supplied power supply.

The following M-Net interfaces are available:

• PAC-YG60MCA: Digital counter interface (Pulse Input).
• PAC-YG63MCA: Analog sensor interface (Analog Input).
• PAC-YG66DCA: Digital Sensor Interface (DIDO).
