The AE-C400X features a 12.1-inch color LCD display that provides excellent visibility. It features a flat-glass capacitive touch screen panel for fast and accurate response.

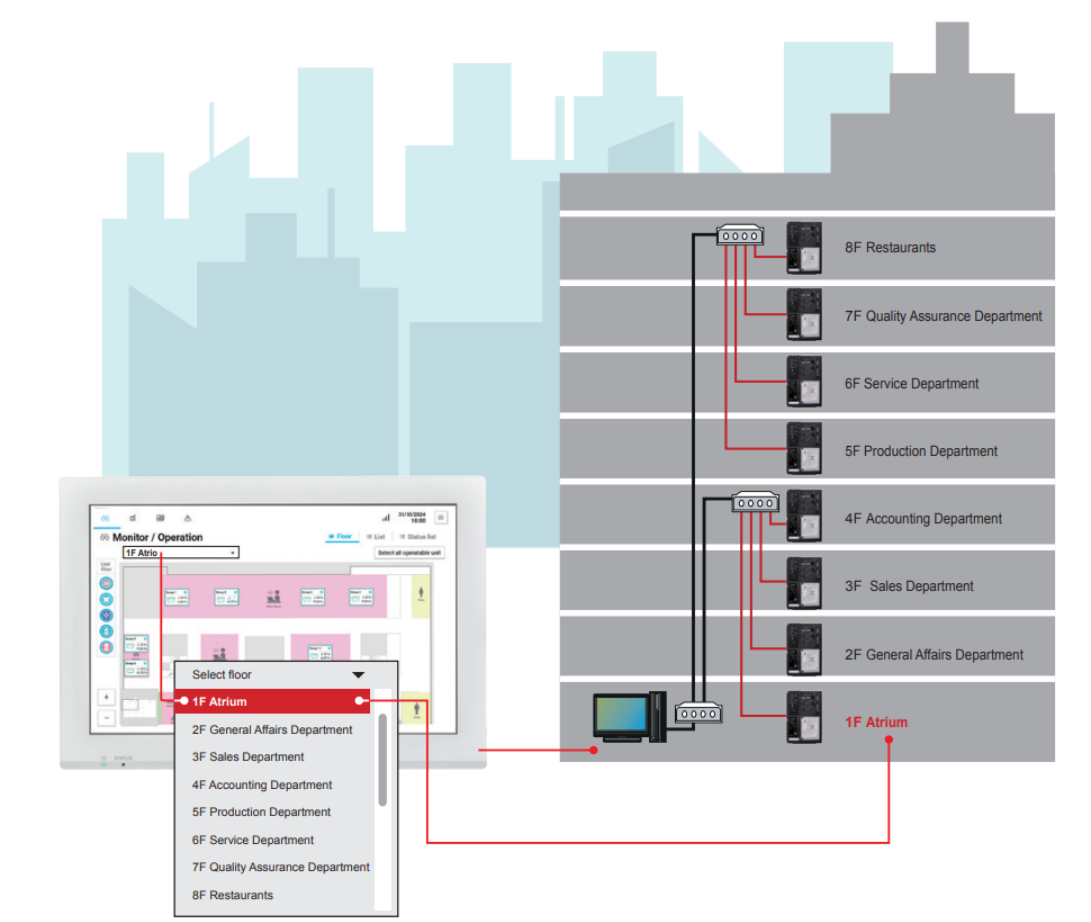

Air conditioners can be monitored and managed remotely from a Web browser* on a personal computer by connecting it to the Internet via a modem or VPN router with a LAN connection. Up to 2,000 indoor units can be controlled from the Web browser.

* For Windows, Microsoft® Edge or Google Chrome is required. For Macintosh, Safari 7 is required. Windows and Microsoft® Edge are registered trademarks of Microsoft Corporation in the United States and other countries.

AE-C400X can control up to 50 indoor units.
By connecting other AE-C400X, up to 40 indoor units can be controlled.

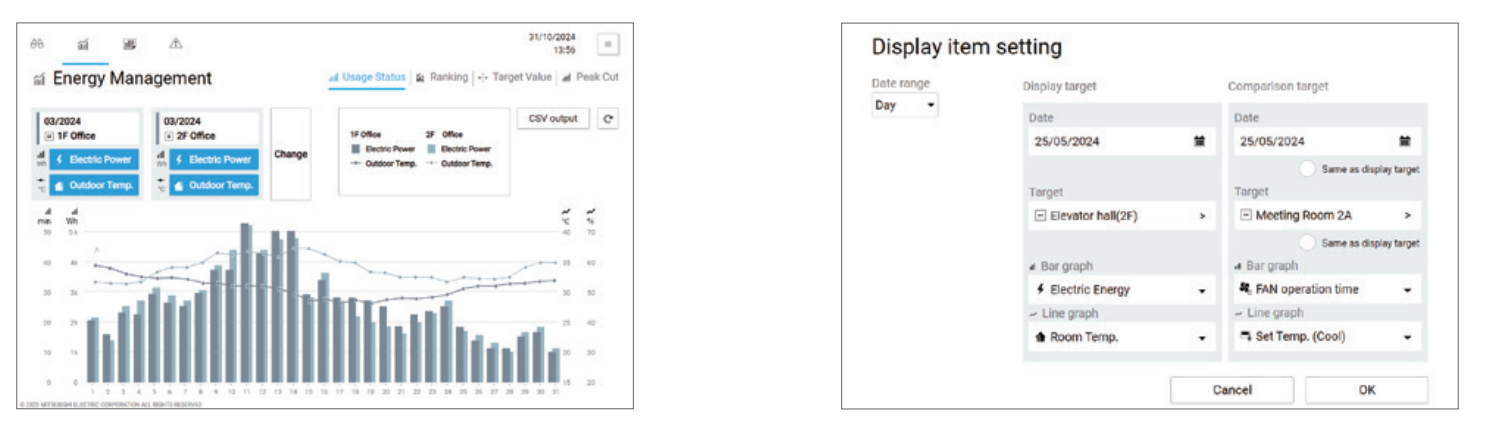

The energy consumption and running time of air conditioners are displayed on the AE-C400X. They can be used to check air conditioner usage and the effect of energy-saving control.

In addition to annual scheduling, five weekly scheduling screens can be set per season, specifying start and stop times, temperature, direction, and airflow speed in each schedule.

Air conditioners can be monitored and managed remotely from a Web browser* on a personal computer by connecting it to the Internet via a modem or VPN router with a LAN connection.

You can control up to 2,000 indoor units from the Web browser.

*For Windows, Microsoft® Edge or Google Chrome is required. For Macintosh, Safari 7 is required. Windows and Microsoft® Edge are registered trademarks of Microsoft Corporation in the United States and other countries.

In addition to annual scheduling, five weekly scheduling schemes can be set per station, specifying start and stop times, temperature, direction, and airflow speed in each schedule.

The energy consumption and running time of air conditioners are displayed on the EW-C50X via Web browser. They can be used to check air conditioner usage and the effect of energy-saving control.

In addition to annual scheduling, five weekly scheduling schemes can be set per station, specifying start and stop times, temperature, direction, and airflow speed in each schedule.

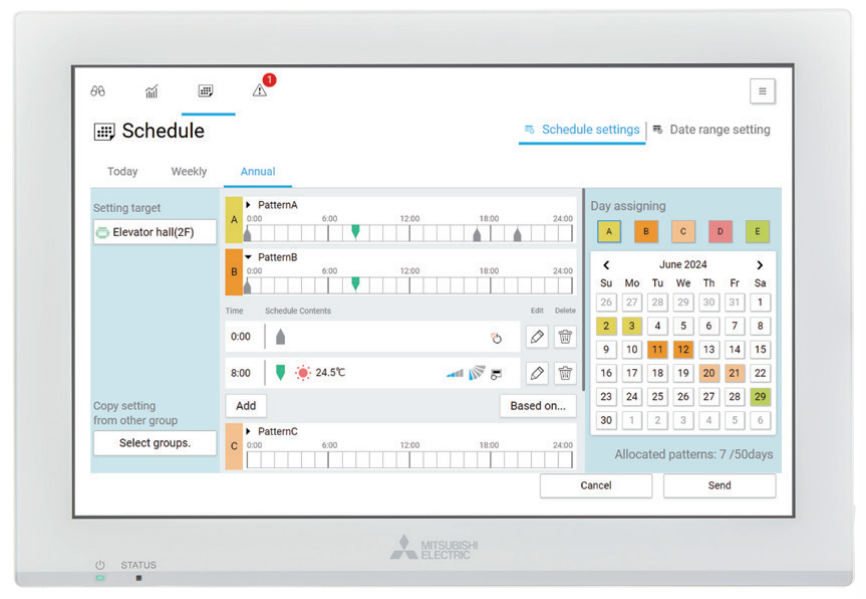

The scheduling function simplifies centralized control by allowing you to set air conditioning programs according to the season. You can create daily, weekly and yearly schedules to adjust the temperature effortlessly. You can set up to 24 different events per day to perfectly suit your needs.

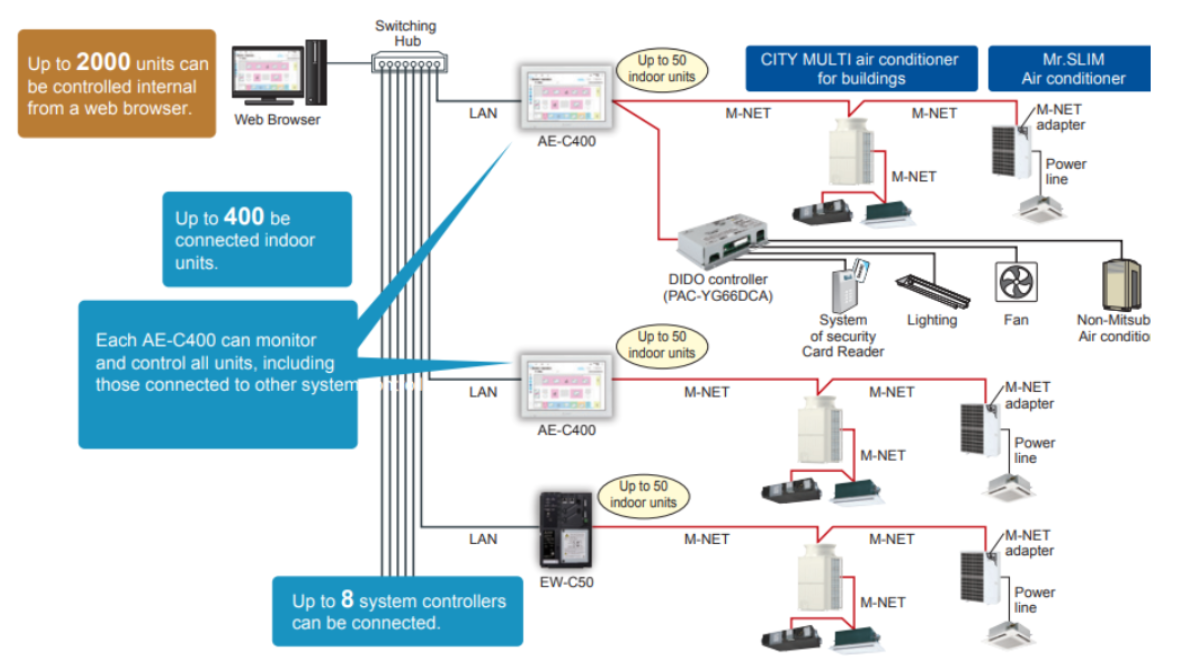

An AE-C400X/EW-C50X can control up to 50 indoor units. By connecting additional AE-C400X or EW-C50X, up to 400 indoor units can be controlled.

*e.g. a 400 internal units plant can be set up with AE-C400(X) combined with EW-C50.


When indoor units are monitored and managed by the centralized monitoring unit, AE-C400/EW-C50 can be connected to the centralized monitoring unit through the open BACnet® protocol by registering the license (BACnet® connection) in the control systems.

Energy consumption and running time of air conditioners can be clearly displayed.

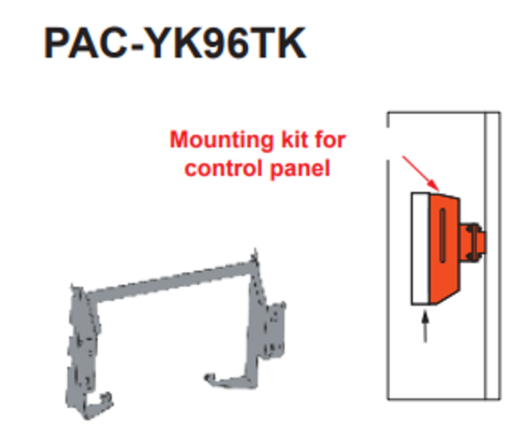

The AE-C400X can be installed in a control panel using the bracket and DIN rail attachments contained in the mounting kit.

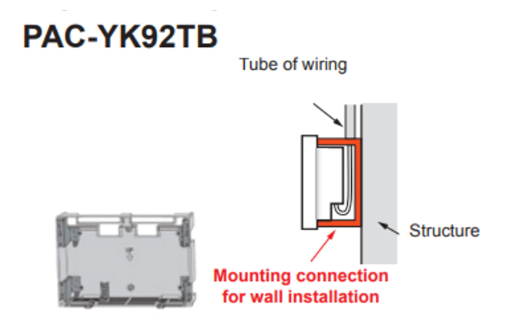

The AE-C400X can be installed on a non-drillable wall (e.g., a concrete wall) using a mounting attachment.

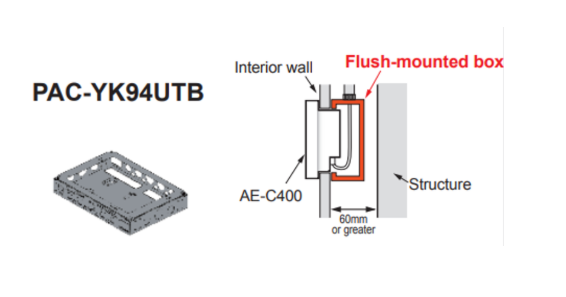

The AE-C400X can be installed inside the wall through the use of a recessed electrical circuit box.
