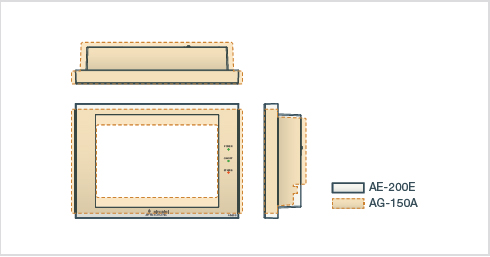

Keeping virtually unchanged in size from the predecessor AG-150, the new centralized WEB Server 3D TOUCH Controller provides more workspace and computing power and flexible resources for future implementations.

The new centralized WEB Server 3D TOUCH Controller represents the evolution of AG-150A (the first centralized control on the market to introduce typical functions from B.M.S. such as displaying graphical floor plans) from which it inherits the technological heritage, while providing a more flexible integrated platform for future implementations.

3D TOUCH Controller represents the ultimate expression in control systems from Mitsubishi Electric, complete with features and functions at the top of the market.

• 10.4" backlit color touchscreen display with SVGA technology with graphical Planimetry display for a large and visible work surface.
• Integrated 240VAC 50 / 60 Hz power supply.
• Management of 50 Groups up to 50 total indoor units.
• Control of Groups, Blocks or Zones single or collective.

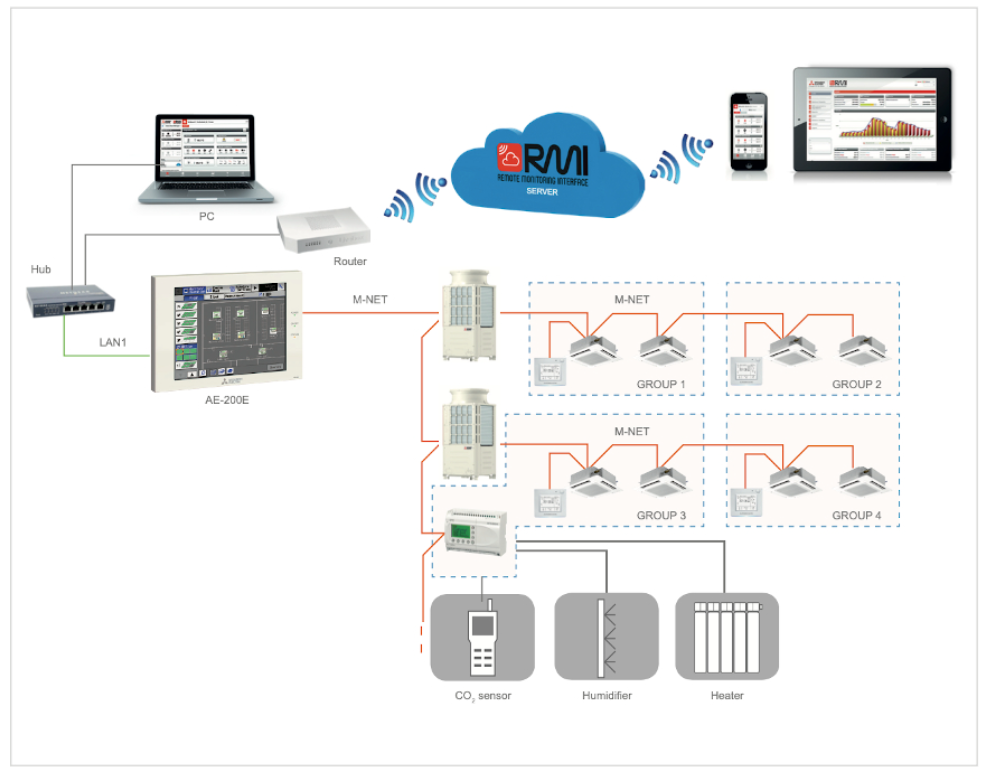

• Ethernet network interface for connection to B.M.S.
supervision systems.
• Integrated WEB Server software for management via Internet Explorer®.
• Integrated 2 GByte SD card for system data storage.
• Direct management of 4 pulse counters without external interface.
• Download of energy consumption data for metering via WEB.
• Complete support of the RMI platform in its most advanced functions for energy monitoring, multi-plant and multi-user management.
• Display and temperature setpoint setting with 0.5°C accuracy.
• Energy-saving functions: Temperature Holding, Temperature Sliding, Optimized Start-up, Dual Setpoints.
• M-Net interfacing with Ecodan package Hot Water Heat Pump (CAHV and CRHV) systems.
• E-mail Notification Function in case of malfunction.
• Complete support of the RMI platform in its most advanced functions for energy monitoring, multi-plant and multi-user management.

3D TOUCH Controller allows for a larger work surface with its 10.4-inch backlit color touchscreen with SVGA technology, which enables easy and intuitive interaction with the system.

It will be possible to display and set the temperature with 0.5°C accuracy and Dual Set-Point function will be available.
