The AT-50B centralized controller echoes the "familly feeling" of the control systems by Mitsubishi Electric (AE-200, PAR-33MAA) with a modern and elegant design thanks to the glossy glass-effect front panel, making it an ideal controller for residential applications as well.

AT-50B has, in fact, a 5" backlit touchscreen display through which up to 50 Indoor Units or Groups can be monitored, configured and managed in a Grid, List or Group view.

Two function keys that can be freely programmed between functions specifically designed to save energy and ensure proper conduct of the VRF CITY MULTI system, allow direct access to the selected function.

• Backlit 5" color LCD touch panel.
• Management of up to 50 Groups of up to 50 Indoor Units.
• Single or collective group control with Grid, List or Group display.
• Dual-SetPoint function.
• SetPoint temperature display and setting with 0.5°C steps.
• 2 Weekly timers (for seasonal switching) and 1 daily timer.

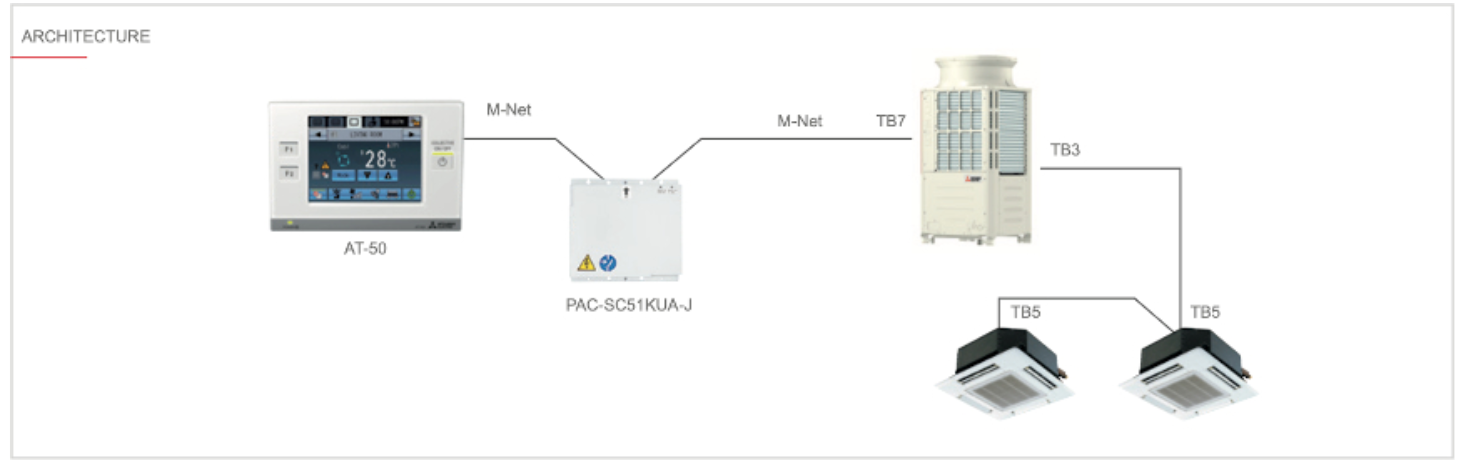

• Simplified connections using a non-polarized two-core cable.
• Me-type M-NET addressing technology.
• 2 function keys freely programmable between functions (Night Set-back, Weekly Time Programming, Operating Mode Switching, Temperature Setting Range Restriction, Local Inhibitions).
• Suggested for management of a single system.
.
• For management of more than one system, the PAC-SC51KUA external power supply must be provided.
