B.M.S. Integration for BACnet® Networks
A new feature available for the WEB Server 3D centralized controllers (AE-200 and EW-50), it is possible to interface the Mitsubishi Electric system directly with the building's BACnet® network, without additional components.
Technical sheet
PIN Code for BACnet® network interfacing.
BACnet® has been adopted in Europe as one of the standards in the field of HVAC systems, along with LonWorks®, and other protocols. Because of its characteristics, it is a system that finds its ideal use in the case of large systems and complex building management processes developed on multiple operational levels.
Thanks to the development of a new feature available for centralized WEB Server 3D controls (AE-200 and EW-50), it is now possible to interface the Mitsubishi Electric system directly with the BACnet® network in the building, without the need to install additional components or hardware.
The connection will be made via a dedicated Ethernet port on the back of the centralized unit, separate from the port already used for connection to local area network LAN.
It will be necessary to provide a BACnet PIN code for each centralized control. Each centralized control equipped with BACnet PIN code can manage a maximum of 50 indoor units and 50 groups.

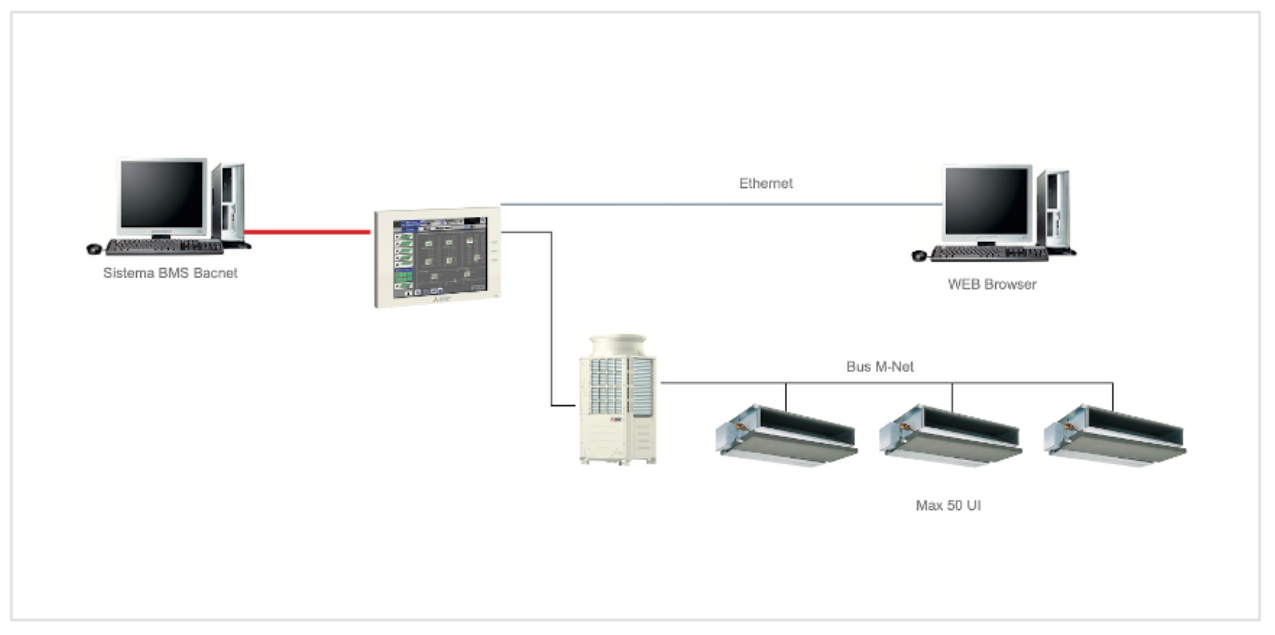

Typical connection layout
