Horizontal centralized commercial ventilation LGH-RVS
A ventilation unit equipped with a fresh air inlet fan, a stale air exhaust fan, a filter system, a by-pass damper, and a sensible heat recovery unit.
Technical sheet
Ducted sensible heat recovery
The new Lossnay LGH-RVS sensitive recuperator allows it to meet different needs due to its features and accessories.
Easy installation, high quietness and recovery efficiency are the three key features of this model.
CO2 sensor (optional)
A CO2 sensor connected directly to the unit allows the air flow rate to be optimized according to the level of carbon dioxide detected in the rooms, improving heat exchange efficiency and contributing to energy savings.
Ease of installation

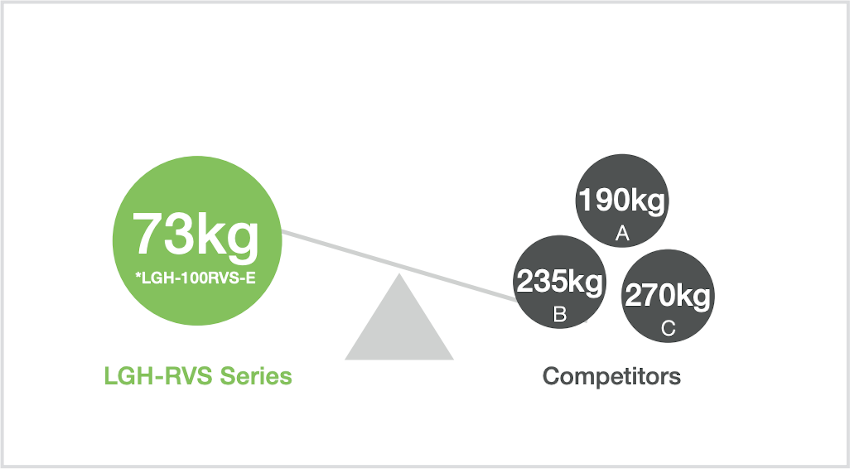

Low weight
Being lightweight is one of the most important factors for installation. The lightweight frame of the LGH-RVS series can provide a huge advantage in ease and safety in installation.
Single condensate drain
Single condensate drainThe LGH-RVS unit is equipped with a special condensate drain that allows the connection of a single condensate evacuation pipe.
Connection to the pipeline is facilitated thanks to the rotating connection system. Finally, thanks to the special design of the new drain system, there will be no need for an external siphon.
Quiet and efficient operation
The new LGH-RVS recuperator has extremely low noise emission thanks to the special sirocco fan manufactured by Mitsubishi Electric coupled with a high-efficiency motor.

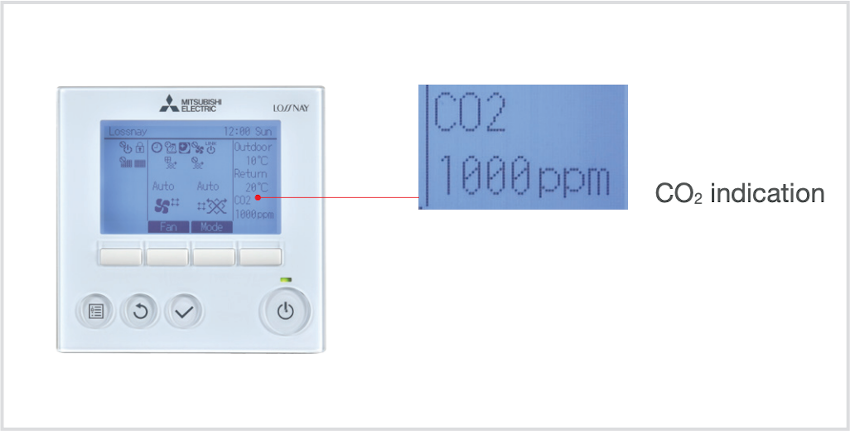

PZ-62DR-EB Dedicated Wire Control
Thanks to the new PZ-62DR-EB control, all functions of the LGH-RVS unit can be controlled.
In the presence of the PZ-70CSW-E (optional) or PZ-70CSB-E (optional) CO2 sensor, it is possible to view through the display of the control the concentration of carbon dioxide detected in the room.
Customizable filtration level
The new LGH-RVS comes standard with G3 (Coarse 50%) filters. For a higher level of filtration performance, F8 filters can be adopted.

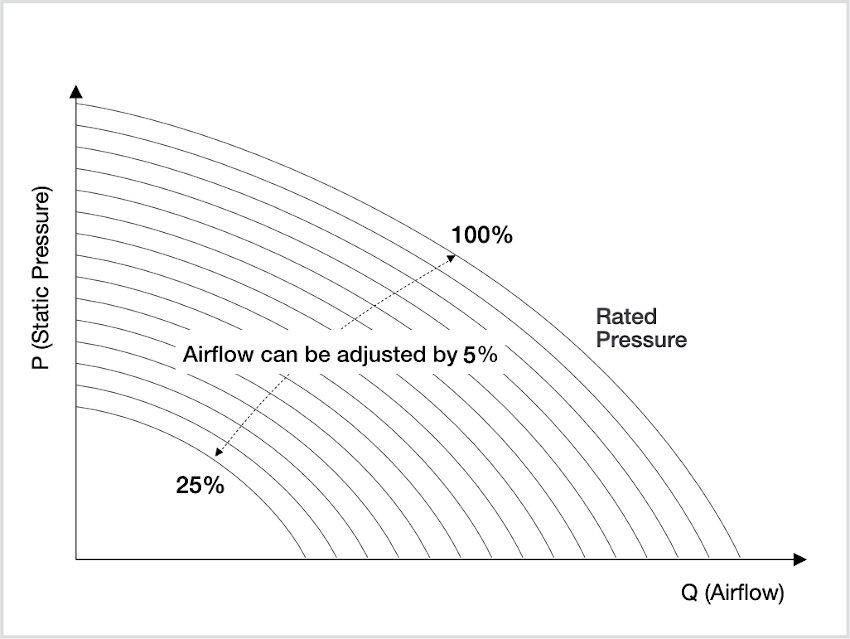

Modulation of air flow rate
The inverter motor of the fans, designed and manufactured directly by Mitsubishi Electric, ensures maximum output with minimum power consumption and allows for modulation from 25% up to 100% of the ventilation speed in inlet and exhaust (increments/decrements of +/- 5%)
.
MELCloud connection (optional)
It is possible to control and monitor the unit remotely through the MelCloud platform. This requires the installation of the optional MAC-587IF-E interface card.
.Mitsubishi Electric puts the best professionals at your service to advise you in your choice and guide you through all the steps of purchase and installation.
