Outdoor Units EcoStandard

Serie
Smart
Environmentally friendly refrigerant R32
Good value for money
MEQ Quality
Length of pipes up to 40 m
Compact size
Low noise
Cooling operating range up to +46 °C
Silent mode and demand control (PUZ-SM models only).
Gas R32
Refrigerant Gas R32
Modelli mono/trifase
Single/three-phase models
Potenza
Power from 7.1 to 14.0 kW
Raffrescamento/riscaldamento via aria
Air cooling/heating

Compact chassis, one fan with greater energy saving performance

A complete line-up including deluxe units that offer added energy savings. The synergy of higher energy efficiency and more comfortable room environment results in the utmost user satisfaction.

Technical sheet

Expand all | Collapse all

Inverter technology makes it possible to electronically control the voltage, current, and frequency of electrical equipment, including the motor that drives the compressor in air conditioning units. The advantages of this technology are considerable, starting with the ability to drastically reduce consumption and compressor wear and tear.

An air conditioner that is not equipped with an inverter device uses the compressor's alternating on/off operation to achieve set-point conditions in the room. This not only increases the consumption of the compressor, which is required to work at full power every time it is turned on, but also harms comfort in the room by raising the temperature too high or operating at too low a temperature.

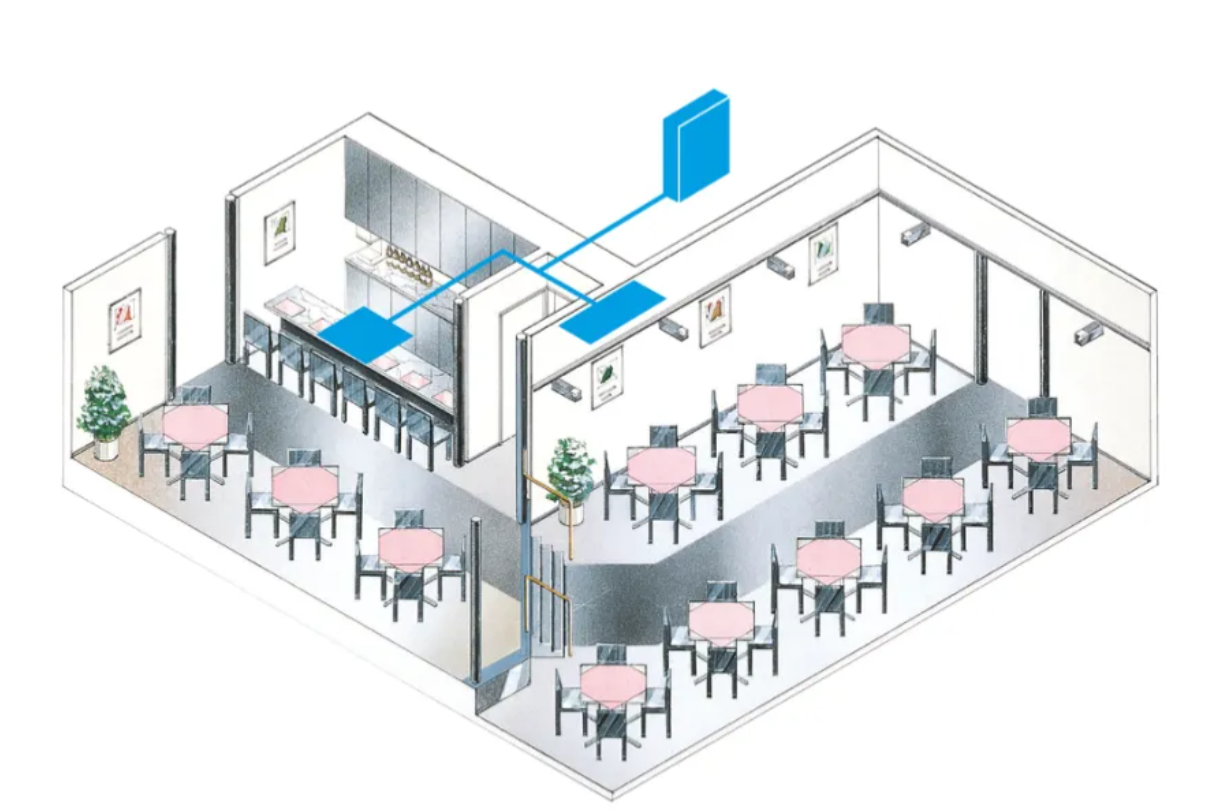

The Smart R32 line allows you to create combinations of indoor units, in large and dynamic environments (e.g., restaurants, stores, etc.): the Free Compo.

With a single outdoor unit you can manage multiple indoor units (in Mitsubishi Electric's commercial range you can find the right solution to meet your every need).

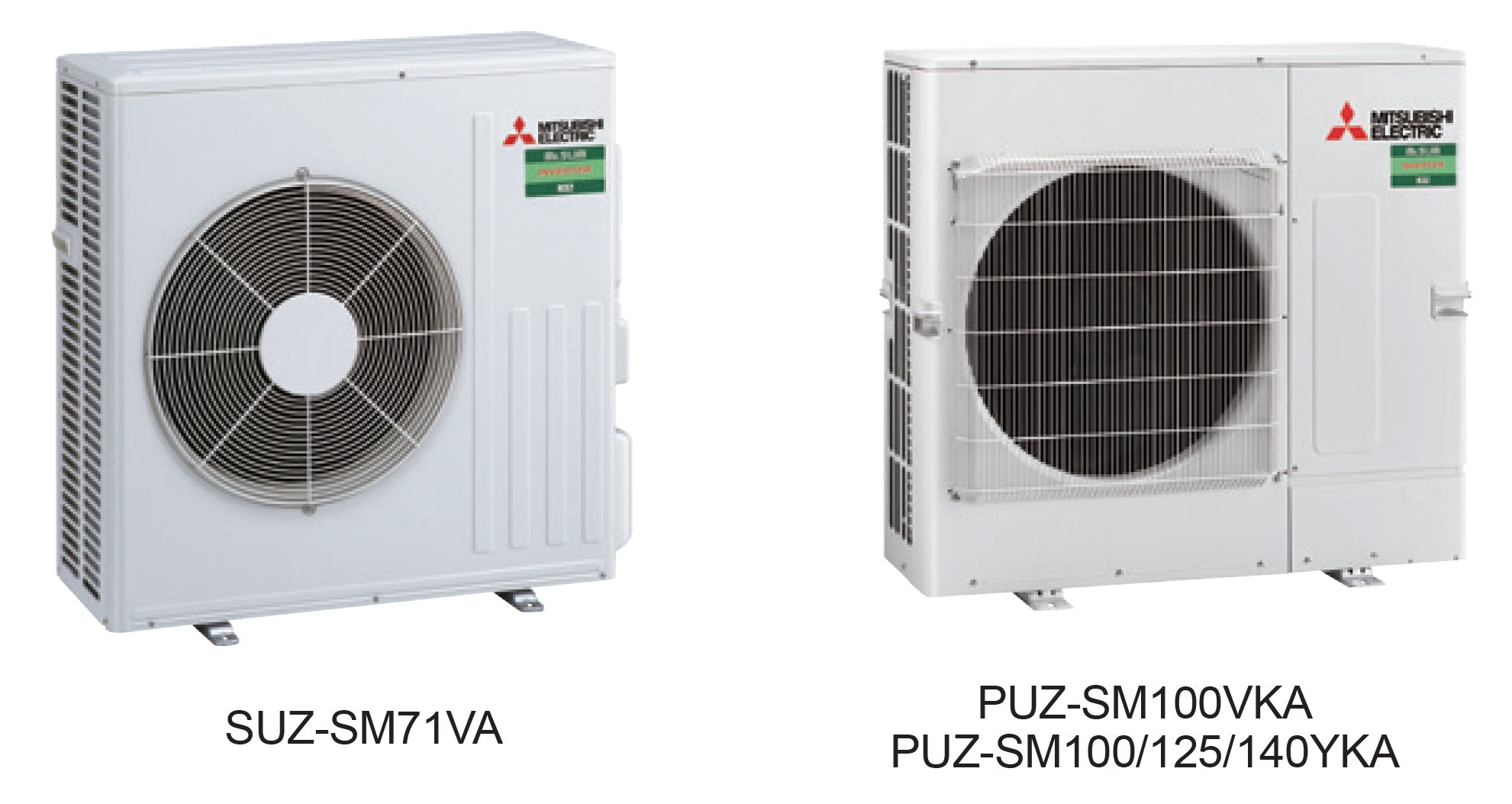

Mitsubishi Electric introduces new models of outdoor units, SUZ-SM71 and PUZ-SM at R32, with compact dimensions (less than one meter in height).
The units are available in sizes 71 and 100/125/140 (both single and three-phase). Thanks to the single-fan chassis, these units boast greater flexibility and less impact to the eye, during and after installation.

The size is reduced, but the length of the piping remains the same:
- Maximum length: 40m (30m for sizes 71 and 100)
- Maximum height difference: 30m
